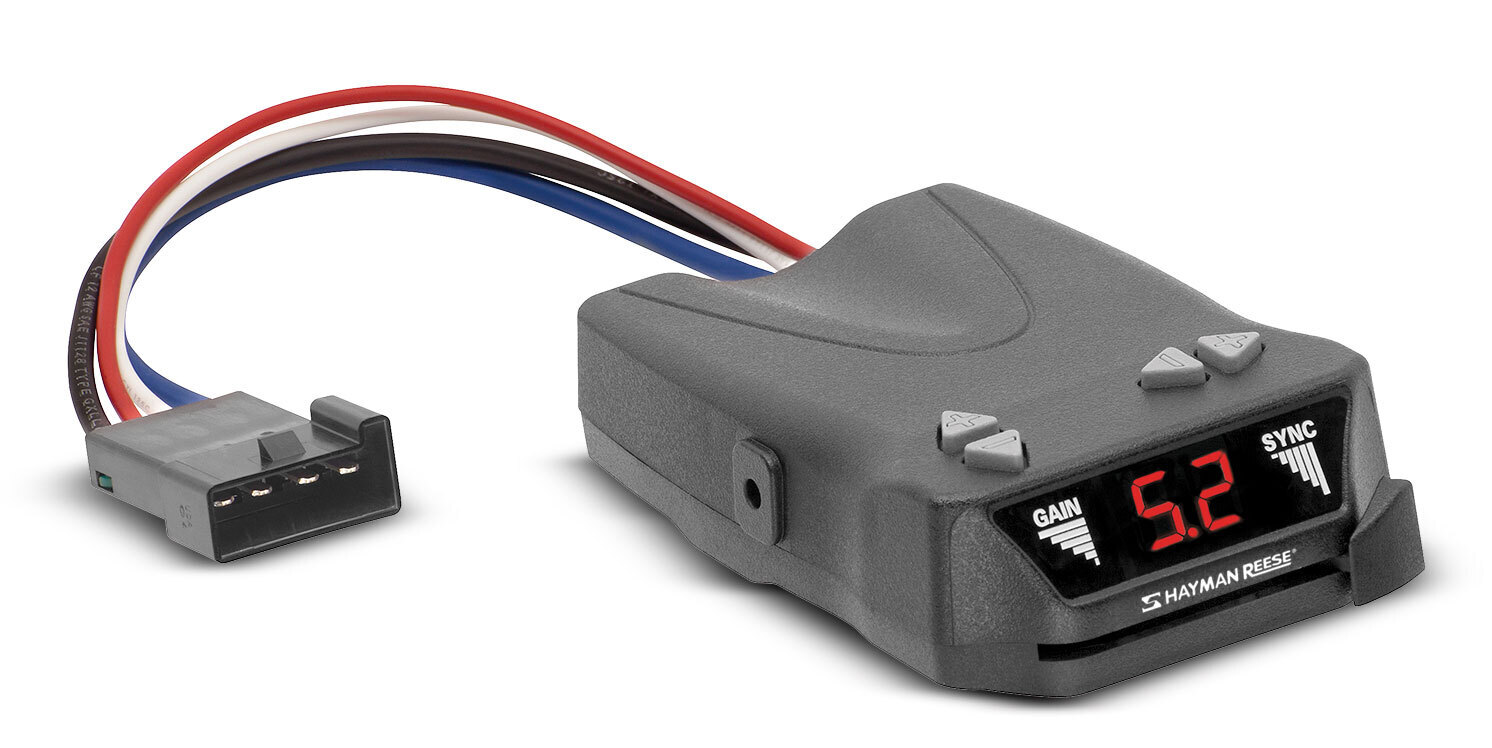

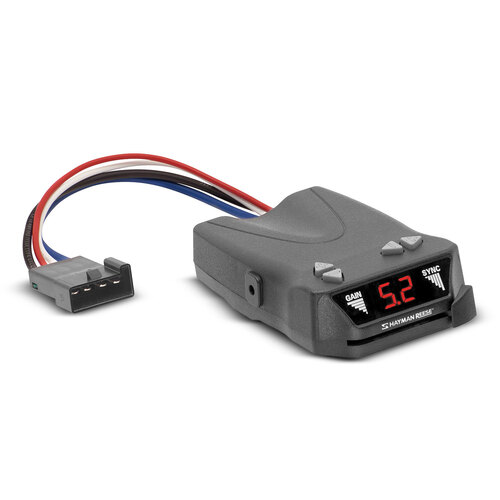

HAYMAN REESE GUARDIAN BRAKE CONTROLLER ELECTRONIC. 05650

The Guardian Timer Brake Controller by Hayman Reese replaces the popular Sentinel 5350. Like its predecessor it has no moving parts or pendulums to adjust, it can be mounted in virtually any position that is in reach of driver and is now 53% smaller. Mounting bracket and hardware are included.

It has a slim design to provide more under dash clearance. A conventional four wire hook-up is illustrated in easy to follow instructions.

Features

• Digital Display shows output going to brakes
• 100% solid state construction.
• No moving parts or pendulums.
• No levelling required.
• Compact size, mounts anywhere inside passenger compartment.
• Soft touch variable manual control.
• Meets all Australian Standards.
• Includes mounting bracket, hardware, comprehensive installation instructions & trouble shooting guide.
• For use on 12v negative ground systems only.
• 3 year warranty.

Specifications

• Model: 05650, , 350-01215
• Brand: Hayman Reese
• Barcode: 9321963116289
• Display: Digital Display of output level
• Dimensions(mm): 71(w) x 30(h) x 109(d)
• Voltage: 12V, negative ground
• Axles: Suits 1, 2 3 or 4 axles
• Mounting: Any angle, and direction, must be within reach of driver
• Connections: Smart Click compatible OR remove connector for 4 Wire connection.
• Shipping Weight: 330 grams.
• Shipping Dimensions: 7 cm x 11 cm x 18 cm.
