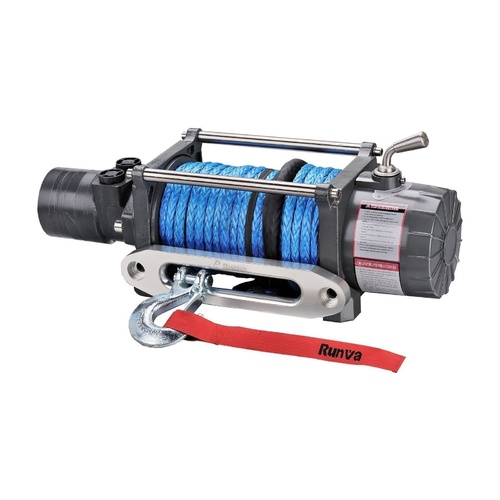

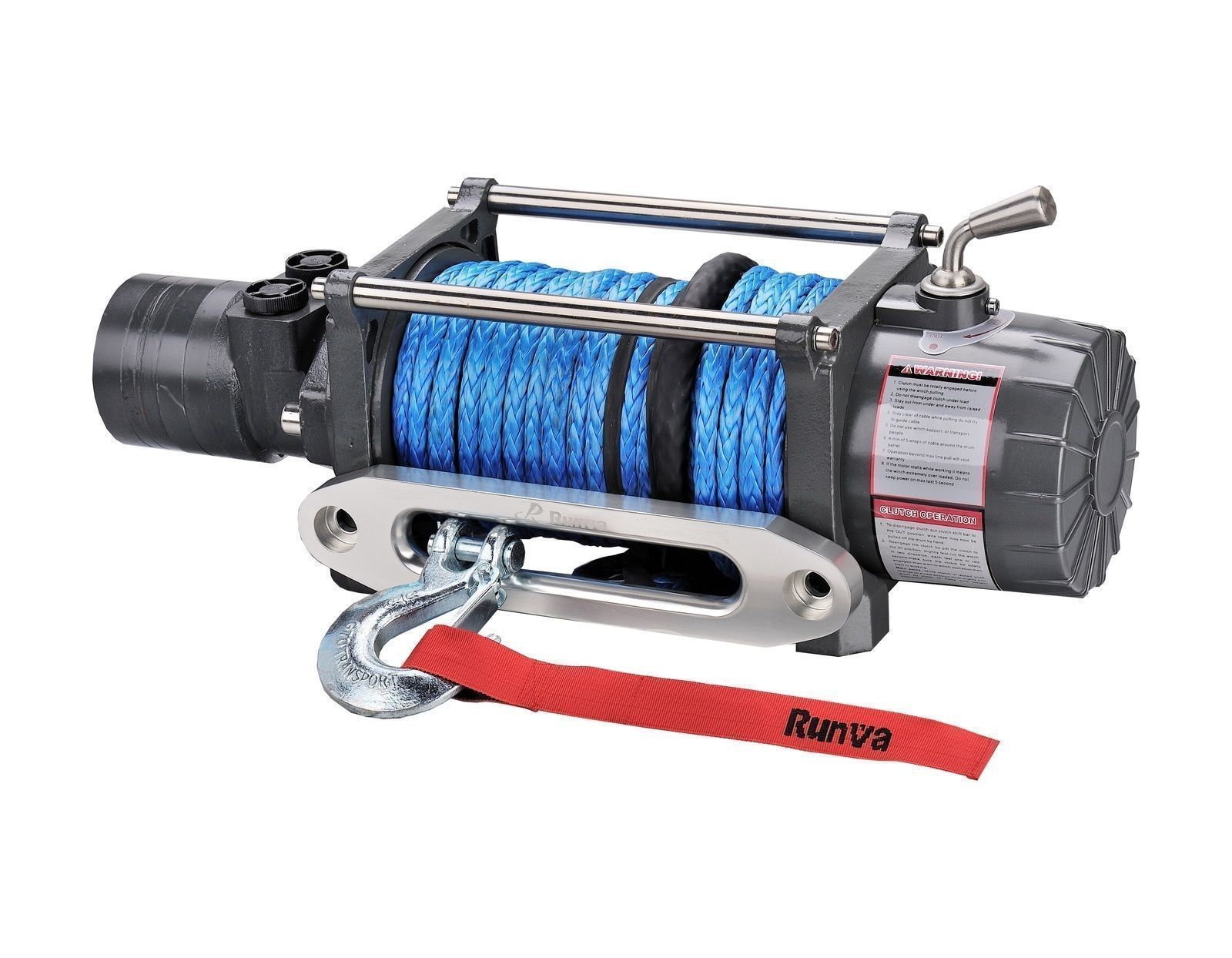

Runva HWX10000 12V with Synthetic Rope
Make 4 payments of $362.50 over 8 weeks and get it now!
Notify me when back in stock
Package includes:
- Winch with Dyneema Winch Rope/Steel Cable
- Valve Block
- Directional Control Valve (12V or 24V)
- 3.7 Handheld Remote
- 4 x Hydraulic Hoses
- 6 x Hydraulic Hose Fittings
- Aluminium Hawse Fairlead/4 Way Stainless Steel Roller Fairlead
- Clevis Style Safety Hook
- Mounting Bolts
Features:
- Extremely watertight with heavy duty internal seals
- Free spooling clutch
- Full metal internal and external design
- Complete kit with directional control valve and remote (pump not supplied)
- Winch power in and out
- Heavy duty hydraulic motor
- Can be run with small hydraulic pump
- Easy to install hydraulic setup
- Limited Lifetime Warranty
Specifications:
Rated Line Pull 10000lb (4536kg)
Motor Displacement 65ml/r
Oil Flow 5-45L/min
Pressure 10MPa
Gear Train Full Steel Planetary
Gear Ratio 28:1
Brake Automatic Load Holding Screw Cone
Dyneema 10mm x 26.5m
Steel Cable 9.2mm x 26m
Drum Size 63mm x 223mm
Mounting Bolt Pattern 254mm x 114.3mm
Overall Dimensions 550mm x 160mm x 217mm
Finish Grey Powder Coat
Warranty Limited Lifetime
| Line pull lb |
Pressure Mpa(Psi) |
Flow G/min(L/min) |
Line speed ft/min (m/min) |
Layer of Cable | Rated line pull Per layer lb’s (kg) |
Total Rope On Drum Per layer ft (m) |
|
|---|---|---|---|---|---|---|---|
| 0 | 2.0 (290.1) | 1.3 (5) | 1.8 (0.6) | 1 | 10000 (4535) | 17.5 (5.3) | |
| 4000 | 3.8 (551.1) | 2.6 (10) | 3.7 (1.1) | 2 | 7969 (3615) | 39.5 (12.0) | |
| 6000 | 7.2 (1044.2) | 5.2 (20) | 7.7 (2.3) | 3 | 6624 (3005) | 64.9 (19.8) | |
| 8000 | 8.6 (1247.3) | 9.2 (3.5) | 13.3 (4.0) | 4 | 5667 (2571) | 87.0 (26.0) | |
| 10000 | 10.0 (1450.3) | 11.9 (45) | 17.5 (5.3) |
(HWX10000-12VD)
| SKU | HWX10000-12VD |
| Brand | Runva |
| Shipping Weight | 35.0000kg |
| Shipping Width | 30cm |
| Shipping Height | 30cm |
| Shipping Length | 40cm |
| Shipping Cubic | 0.036000000m3 |
General Warranty Information
Since all Runva Performance Winches are produced at the highest standard, we proudly offer a Limited Lifetime Warranty on all products.
Lifetime Mechanical Warranty This covers all Mechanical Components on the winch. (Except Steel Cable and Dyneema Winch Rope)
5 Year Electrical Warranty this covers all Electrical Components on the winch.
No Yearly Servicing Required
No Hidden Fine print
Extremely low failure rate.
In the unlikely event of a claim, they are acknowledged and handled very quickly
