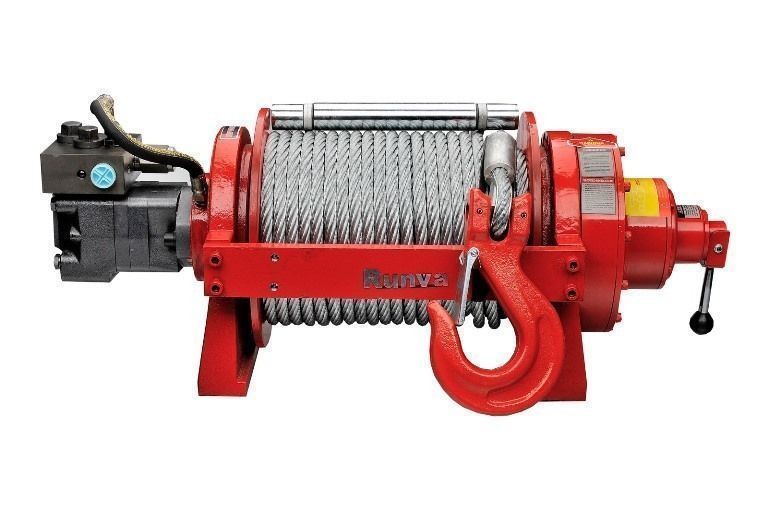

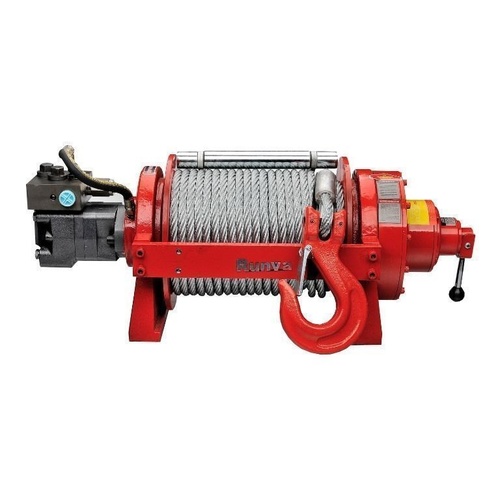

Runva HWP20000Y2P with Steel Cable
Make 4 payments of $777.50 over 8 weeks and get it now!
Notify me when back in stock
Package includes:
- Winch with Steel Cable
- Cable Tensioner
An accessory kit can be purchased for this winch, which includes:
- Electric Solenoid Directional Control Valve
- Hydraulic Hoses
- Hydraulic Fittings
- Remote Control
Features:
- Extra heavy duty commercial winch
- Free spooling clutch – spring engaged
- Full metal internal and external design
- Fitted with cable tensioner
- Extra heavy duty high torque hydraulic motor
- Rugged long life commercial design
- Easy to install hydraulic setup
- Designed for pulling heavy loads
- Limited Lifetime Warranty (18 Month Commercial Use Warranty)
Specifications:
Rated Line Pull 20000lb (9702kg)
Motor Displacement 100ml/r
Oil Flow 15-75L/min
Pressure 17.5 MPa
Gear Train Heavy Duty – Full Steel Planetary
Gear Ratio Two Speed Option Available
Regular Speed – 39:1/High Speed – 6:1
Brake Automatic Heavy Duty Brake System
Steel Cable 14mm x 48m. Cable Tensioner Included
Drum Size 138mm x 316mm
Mounting Bolt Pattern 431mm x 192mm/431mm x 64mm
Overall Dimensions 815mm x 360mm x 305mm
Finish Heavy Duty Red Powder Coat
Warranty Limited Lifetime (18 Month Commercial Use)
| Line pull lbs |
Pressure Mpa (psi) |
Flow g/min (l/min) |
Line speed ft/min (m/min) |
Layer of Cable | Rated line pull Per layer lb’s (kg) |
|
|---|---|---|---|---|---|---|
| 0 | 2.5 (362.6) | 5.3 (20) | 6.6 (2.0) | 1 | 20000 (9072 | |
| 4000 | 4.2 (609.1) | 7.9 (30) | 11.8 (3.6) | 2 | 16889 (7661) | |
| 8000 | 8.5 (1232.8) | 13.2 (50) | 19.7 (6.0) | 3 | 14615 (6630) | |
| 15000 | 14.0 (2030.5) | 15.9 (60) | 23.6 (7.2) | 4 | 12881 (5843) | |
| 20000 | 17.5 (2538.1) | 19.9 (75) | 29.5 (9.0) |
(HWP20000Y2P-S)
| SKU | HWP20000Y2P-S |
| Brand | Runva |
| Shipping Weight | 35.0000kg |
| Shipping Width | 30cm |
| Shipping Height | 30cm |
| Shipping Length | 40cm |
| Shipping Cubic | 0.036000000m3 |
| Unit Of Measure | ea |
| Assembled Length | 60cm |
| Assembled Width | 40cm |
General Warranty Information
Since all Runva Performance Winches are produced at the highest standard, we proudly offer a Limited Lifetime Warranty on all products.
Lifetime Mechanical Warranty This covers all Mechanical Components on the winch. (Except Steel Cable and Dyneema Winch Rope)
5 Year Electrical Warranty this covers all Electrical Components on the winch.
No Yearly Servicing Required
No Hidden Fine print
Extremely low failure rate.
In the unlikely event of a claim, they are acknowledged and handled very quickly
