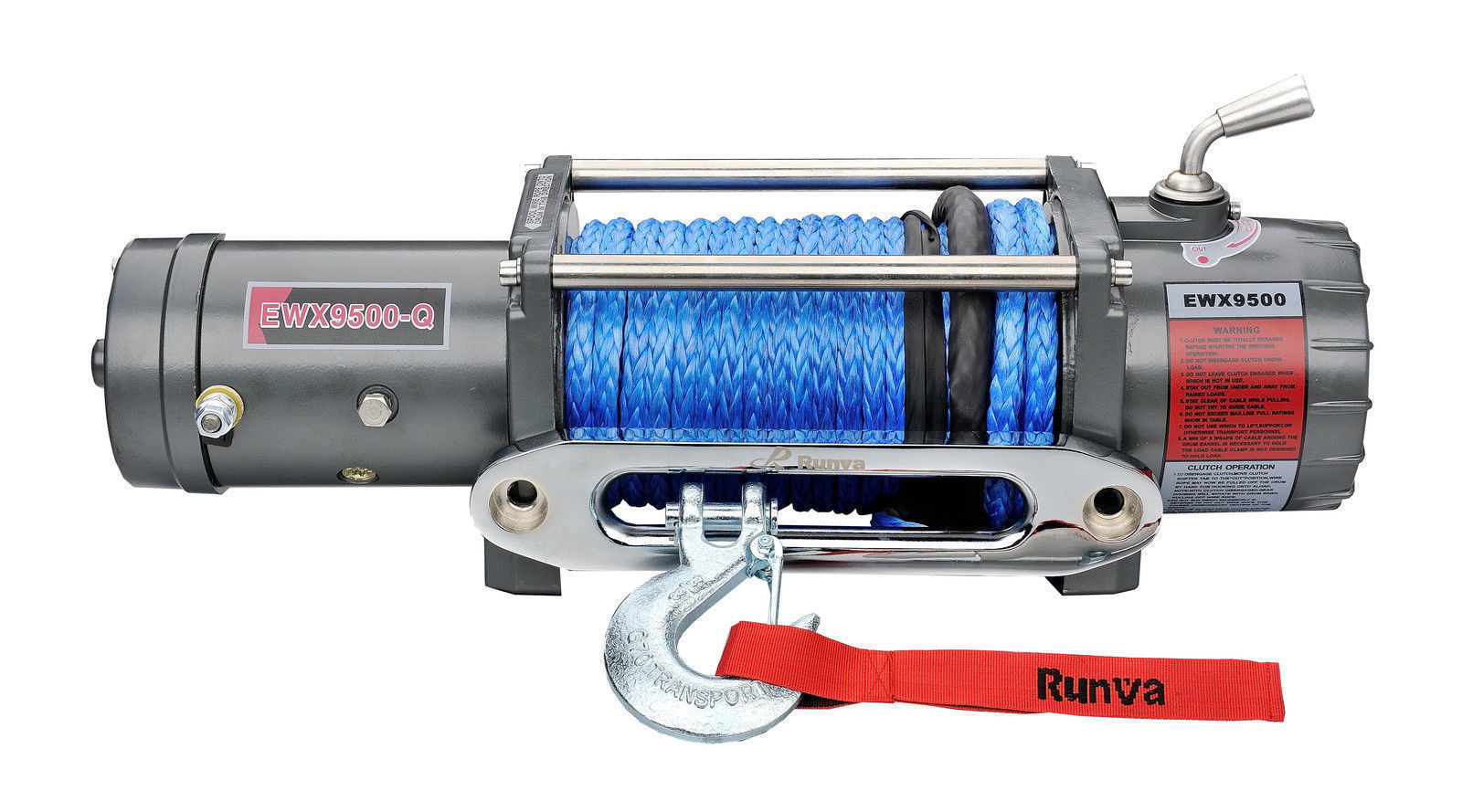

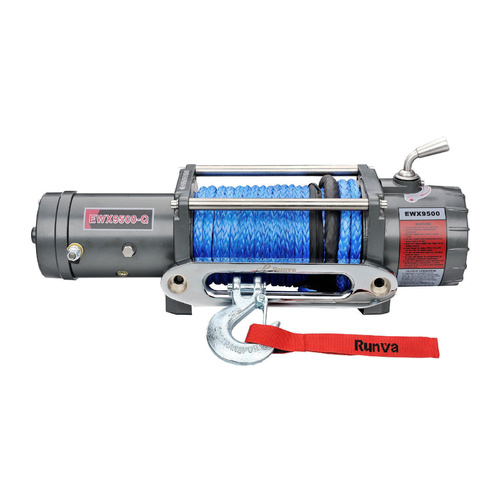

Runva EWX9500-Q 24V with Synthetic Rope

$815.00
Sold Out - Backorder Available
Usually ships within 1 day

Make 4 payments of $203.75 over 8 weeks and get it now!



Calculate Shipping

Runva EWX9500-Q 24V Dyneema

Package includes:

  • Winch with Dyneema Winch Rope/Steel Cable
  • Solenoid (12V/600A or 24V/400A)
  • Heavy duty 1.8m Battery Leads
  • Heavy Duty Leads from Solenoid to Winch Motor
  • 3.7m Handheld Remote
  • Wireless Remote
  • Aluminium Hawse Fairlead/Stainless Steel Roller Fairlead
  • Clevis Style Safety Hook
  • Mounting Bolts



Features:

  • Extremely watertight with heavy duty internal seals
  • Free spooling clutch
  • Full metal internal and external design
  • 100% Waterproof competition grade solenoid
  • Winch power in and out via remote
  • Heavy duty series wound motor
  • One of our fastest electric winches
  • Extra low gearing and extra big motor
  • Limited Lifetime Warranty

Specifications:

Rated Line Pull 9500lb (4309kg)
Motor Series Wound
(12V) 6.4kW/8.6hp or
(24V) 8.0kW/10.7hp
Gear Train Full Steel 3 Stage Planetary
Gear Ratio 110:1 – Extra Low for Extra Speed
Brake Automatic Load Holding Screw Cone
Dyneema 10mm x 26.5m
Steel Cable 9.2mm x 26.5m
Mounting Bolt Pattern 254mm x 114.3mm
Overall Dimensions 577mm x 163mm x 221mm
Remote Control 3.7m Handheld Remote/Wireless Remote
Battery Leads Included. 2 x 1.8m Heavy Duty Leads
Finish Grey Powder Coat
Warranty Limited Lifetime


Competition proven in the harshest terrain around Australasia, this winch is sure to impress. Designed for speed and power.


Line pull Line speed
ft/min (m/min)
Current draw
Amps (max)
  Layer of Cable Rated line pull
Per layer lb’s (kg)
lb DC 12V DC 24V DC 12V DC 24V
0 50.2 (15.3) 53.1 (16.2) 80 45   1 9500 (4309)
4000 17.0 (5.2) 18.3 (5.6) 300 175   2 7706 (3495)
6000 11.8 (3.6) 15.7 (4.8) 400 230   3 6482 (2940)
8000 9.5 (2.9) 13.1 (4.0) 470 300   4 5593 (2537)
9500 8.8 (2.7) 11.8 (3.6) 530 335



(EWX9500-Q-24VD)

SKU EWX9500-Q-24VD
Brand Runva
Shipping Weight 30.0000kg
Shipping Width 30cm
Shipping Height 30cm
Shipping Length 40cm
Shipping Cubic 0.036000000m3
Unit Of Measure ea
Assembled Length 40cm
Assembled Height 25cm
Assembled Width 25cm

General Warranty Information

Since all Runva Performance Winches are produced at the highest standard, we proudly offer a Limited Lifetime Warranty on all products.

Lifetime Mechanical Warranty  This covers all Mechanical Components on the winch. (Except Steel Cable and Dyneema Winch Rope)

5 Year Electrical Warranty this covers all Electrical Components on the winch.

No Yearly Servicing Required
No Hidden Fine print
Extremely low failure rate.

In the unlikely event of a claim, they are acknowledged and handled very quickly
