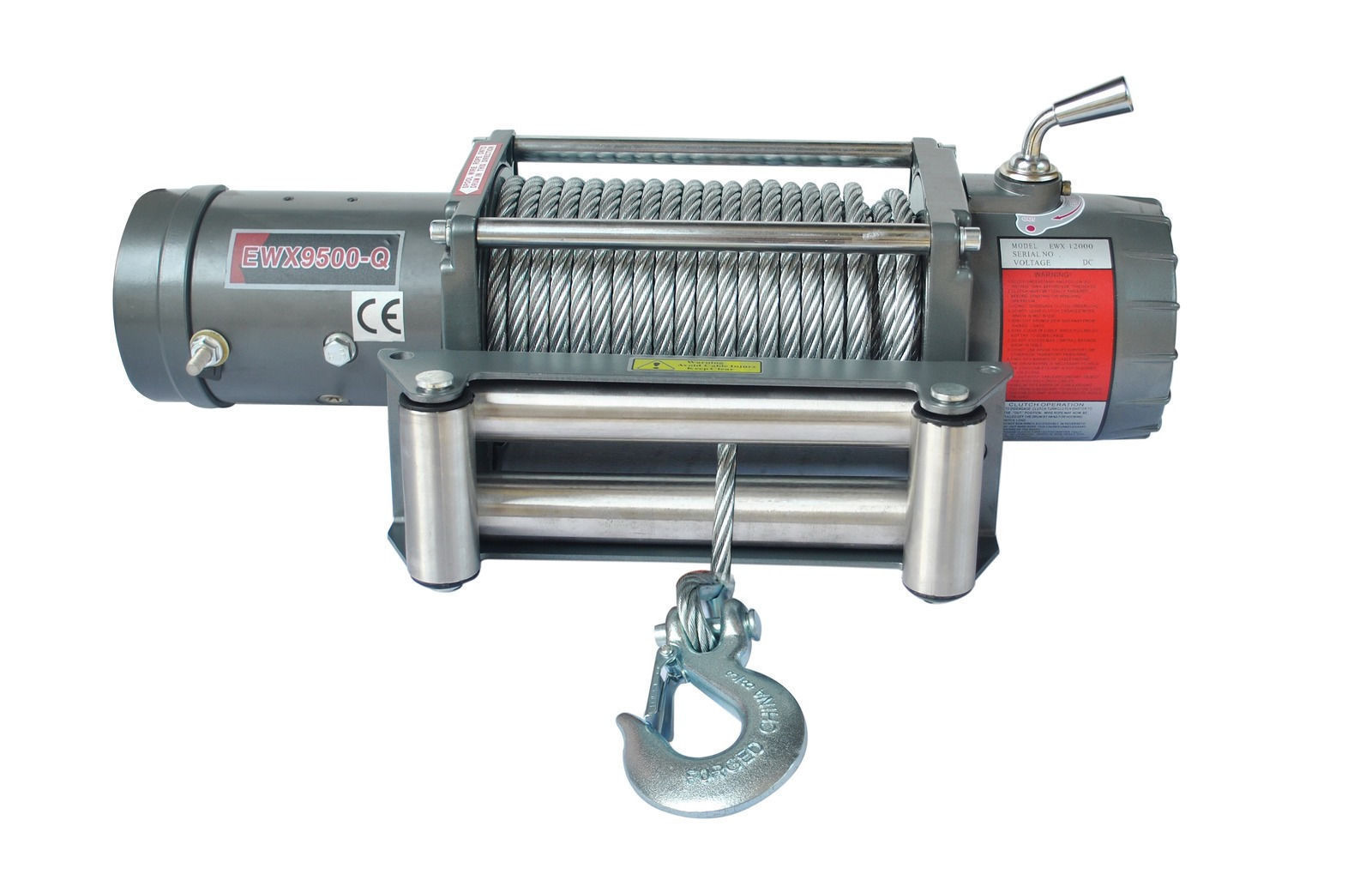

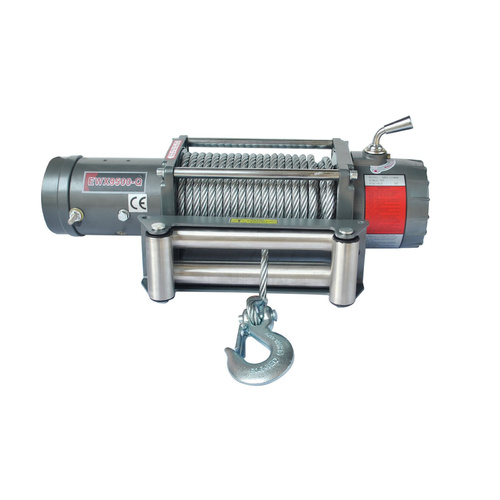

Runva EWX9500-Q 12V with Steel Cable
Make 4 payments of $176.25 over 8 weeks and get it now!
Notify me when back in stock
Package includes:
- Winch with Dyneema Winch Rope/Steel Cable
- Solenoid (12V/600A or 24V/400A)
- Heavy duty 1.8m Battery Leads
- Heavy Duty Leads from Solenoid to Winch Motor
- 3.7m Handheld Remote
- Wireless Remote
- Aluminium Hawse Fairlead/Stainless Steel Roller Fairlead
- Clevis Style Safety Hook
- Mounting Bolts
Features:
- Extremely watertight with heavy duty internal seals
- Free spooling clutch
- Full metal internal and external design
- 100% Waterproof competition grade solenoid
- Winch power in and out via remote
- Heavy duty series wound motor
- One of our fastest electric winches
- Extra low gearing and extra big motor
- Limited Lifetime Warranty
Specifications:
Rated Line Pull 9500lb (4309kg)
Motor Series Wound
(12V) 6.4kW/8.6hp or
(24V) 8.0kW/10.7hp
Gear Train Full Steel 3 Stage Planetary
Gear Ratio 110:1 – Extra Low for Extra Speed
Brake Automatic Load Holding Screw Cone
Dyneema 10mm x 26.5m
Steel Cable 9.2mm x 26.5m
Mounting Bolt Pattern 254mm x 114.3mm
Overall Dimensions 577mm x 163mm x 221mm
Remote Control 3.7m Handheld Remote/Wireless Remote
Battery Leads Included. 2 x 1.8m Heavy Duty Leads
Finish Grey Powder Coat
Warranty Limited Lifetime
Competition proven in the harshest terrain around Australasia, this winch is sure to impress. Designed for speed and power.
| Line pull | Line speed ft/min (m/min) |
Current draw Amps (max) |
Layer of Cable | Rated line pull Per layer lb’s (kg) |
|||
|---|---|---|---|---|---|---|---|
| lb | DC 12V | DC 24V | DC 12V | DC 24V | |||
| 0 | 50.2 (15.3) | 53.1 (16.2) | 80 | 45 | 1 | 9500 (4309) | |
| 4000 | 17.0 (5.2) | 18.3 (5.6) | 300 | 175 | 2 | 7706 (3495) | |
| 6000 | 11.8 (3.6) | 15.7 (4.8) | 400 | 230 | 3 | 6482 (2940) | |
| 8000 | 9.5 (2.9) | 13.1 (4.0) | 470 | 300 | 4 | 5593 (2537) | |
| 9500 | 8.8 (2.7) | 11.8 (3.6) | 530 | 335 | |||
(EWX9500-Q-12VS)
| SKU | EWX9500-Q-12VS |
| Brand | Runva |
| Shipping Weight | 30.0000kg |
| Shipping Width | 30cm |
| Shipping Height | 30cm |
| Shipping Length | 40cm |
| Shipping Cubic | 0.036000000m3 |
| Unit Of Measure | ea |
| Assembled Length | 40cm |
| Assembled Height | 30cm |
| Assembled Width | 30cm |
General Warranty Information
Since all Runva Performance Winches are produced at the highest standard, we proudly offer a Limited Lifetime Warranty on all products.
Lifetime Mechanical Warranty This covers all Mechanical Components on the winch. (Except Steel Cable and Dyneema Winch Rope)
5 Year Electrical Warranty this covers all Electrical Components on the winch.
No Yearly Servicing Required
No Hidden Fine print
Extremely low failure rate.
In the unlikely event of a claim, they are acknowledged and handled very quickly
