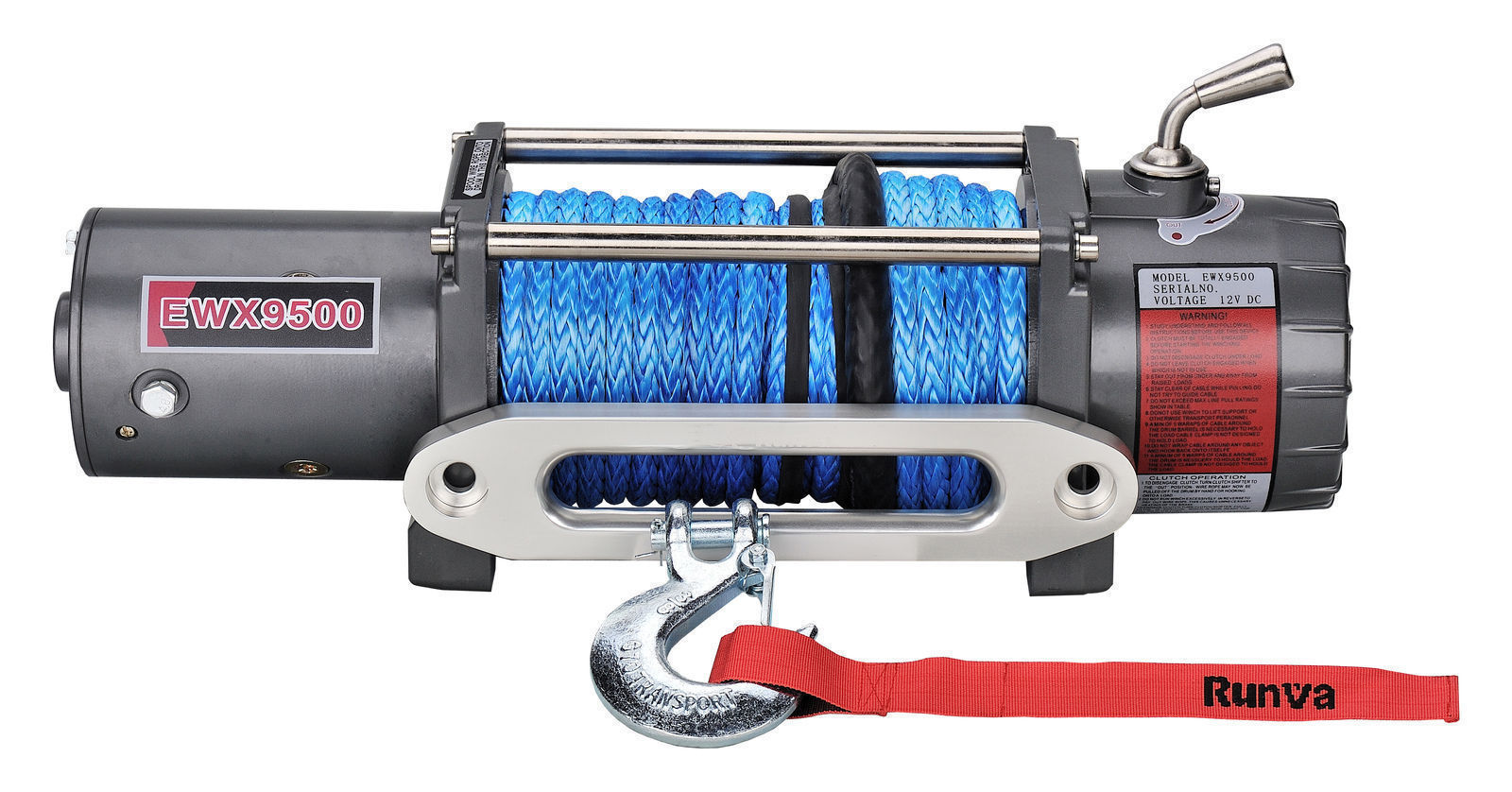

Runva EWX9500 12V with Synthetic Rope

$755.00
Sold Out - Backorder Available
Usually ships within 1 day

Make 4 payments of $188.75 over 8 weeks and get it now!



Calculate Shipping

Runva EWX9500 12V Dyneema

Package includes:

  • Winch with Dyneema Winch Rope/Steel Cable
  • Solenoid (12V/600A or 24V/400A)
  • Heavy Duty 1.8m Battery Leads
  • Heavy Duty Leads from Solenoid to Winch Motor
  • 3.7m Handheld Remote
  • Wireless Remote
  • Aluminium Hawse Fairlead
  • Clevis Style Safety Hook
  • Mounting Bolts



Features:

  • Extremely watertight with heavy duty internal seals
  • Free spooling clutch
  • Full metal internal and external design
  • 100% Waterproof competition grade solenoid
  • Winch power in and out via remote
  • Heavy duty series wound motor
  • One of our most compact full size winches
  • Limited Lifetime Warranty

Specifications:

Rated Line Pull 9500lb (4309kg)
Motor Series Wound (12V) 4.6kW/6.1HP
Gear Train Full Steel 3 Stage Planetary
Gear Ratio 230:1
Brake Automatic Load Holding Screw Cone
Dyneema 10mm x 26.5M
Drum Size 63mm x 223mm
Mounting Bolt Pattern 254mm x 114.3mm
Overall Dimensions 540mm x 163mm x 221mm
Remote Control 3.7m Handheld Remote/Wireless Remote
Battery Leads Included. 2 x 1.8m Heavy Duty Leads
Finish Grey Powder Coat
Warranty Limited Lifetime


Line pull Line speed
ft/min (m/min)
Current draw
Amps (max)
  Layer of Cable Rated line pull
Per layer lb’s (kg)
lb DC 12V DC 12V
0 19.6 (6.0) 80   1 9500 (4309)
3000 12.5 (3.8) 170   2 7706 (3495)
6000 9.8 (3.0) 260   3 6482 (2940)
9500 6.4 (1.9) 380   4 5593 (2537)



(EWX9500-12VD)

SKU EWX9500-12VD
Brand Runva
Shipping Weight 30.0000kg
Shipping Width 30cm
Shipping Height 30cm
Shipping Length 40cm
Shipping Cubic 0.036000000m3
Unit Of Measure ea
Assembled Length 40cm
Assembled Height 30cm
Assembled Width 30cm

General Warranty Information

Since all Runva Performance Winches are produced at the highest standard, we proudly offer a Limited Lifetime Warranty on all products.

Lifetime Mechanical Warranty  This covers all Mechanical Components on the winch. (Except Steel Cable and Dyneema Winch Rope)

5 Year Electrical Warranty this covers all Electrical Components on the winch.

No Yearly Servicing Required
No Hidden Fine print
Extremely low failure rate.

In the unlikely event of a claim, they are acknowledged and handled very quickly
