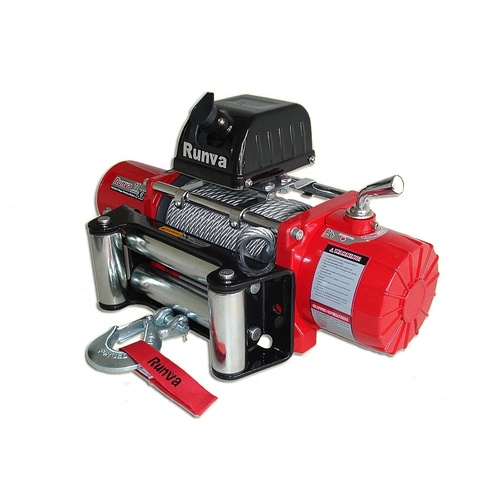

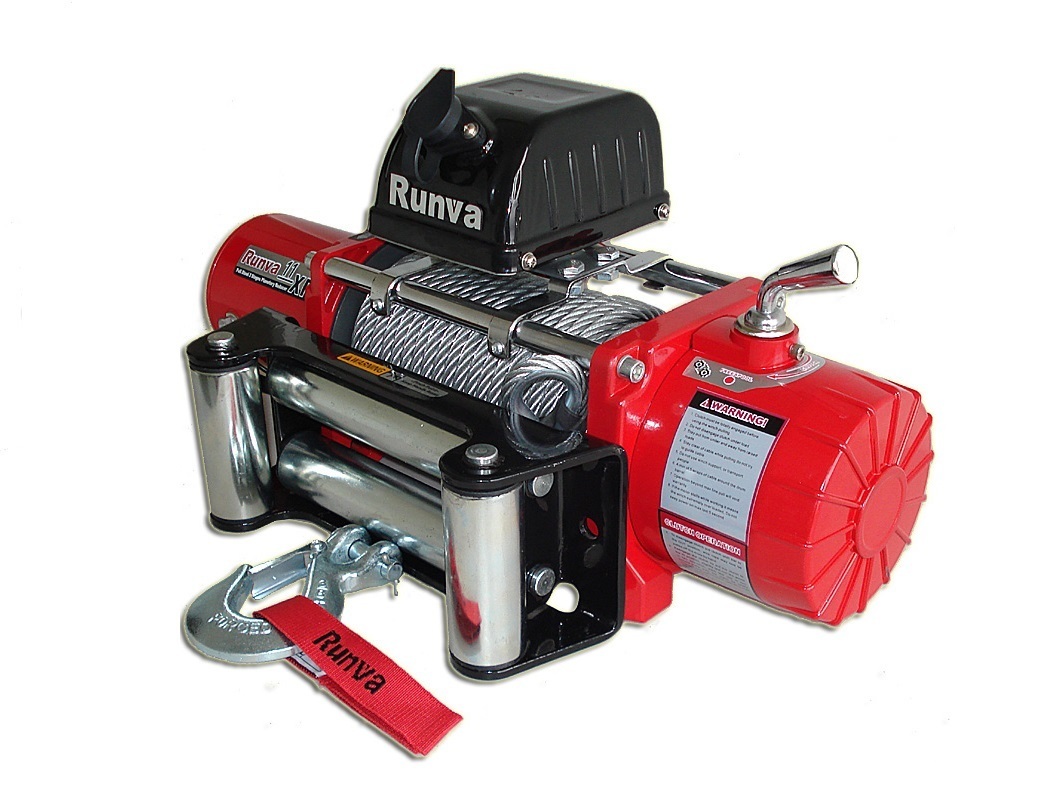

Runva 11XP 12V with Steel Cable

$705.00
Sold Out - Backorder Available
Usually ships within 1 day

Make 4 payments of $176.25 over 8 weeks and get it now!



Calculate Shipping

Runva 11XP 12V with Steel Cable

Package includes:

  • Winch with Steel Winch Rope
  • Solenoid (12V/600A)
  • Heavy Duty 1.8m Battery Leads
  • Heavy Duty Leads from Solenoid to Winch Motor
  • 3.7m Handheld Remote
  • Wireless Remote
  • Aluminium Hawse Fairlead
  • Clevis Style Safety Hook
  • Mounting Bolts
  • Snatch Block
  • Winch Cover



Features:

  • Extremely watertight with heavy duty internal seals
  • Free spooling clutch
  • Full metal internal and external design
  • 100% Waterproof competition grade Solenoids
  • Winch power in and out via remote
  • Heavy duty series wound motor
  • Very compact full size winch
  • Limited Lifetime Warranty

Specifications:

Rated Line Pull 11000lb (4990kg)
Motor - Series Wound (12V) 4.9kW/6.5HP
Gear Train Full Steel 3 Stage Planetary
Gear Ratio 230:1
Brake Automatic Load Holding Screw Cone
Dyneema 11mm x 26.5m
Steel Cable 9.2mm x 26.5m
Drum Size 63mm x 223m
Mounting Bolt Pattern 254mm x 114.3mm
Overall Dimensions 540mm x 163mm x 221mm
Remote Control 3.7m Handheld Remote/Wireless Remote
Battery Leads Included. 2 x 1.8m Heavy Duty Leads
Finish Red Powder Coat
Warranty Limited Lifetime

The perfect all-round winch. Attractive finish that would complement any vehicle no matter how tough or shiny.

Line pull Line speed
ft/min (m/min)
Current draw
Amps (max)
  Layer of Cable Rated line pull
Per layer lb’s (kg)
lb DC 12V DC 12V
0 22.3 (6.8) 100   1 11000 (4990)
4000 13.1 (4.0) 220   2 8766 (3976)
8000 9.8 (3.0) 330   3 7286 (3305)
11000 5.8 (1.8) 430   4 6233 (2827)

11XP DRAWING

(11XP-12VS-RED)

New Freight Policy

Please ensure there is someone at the address where stock is being sent to. We have instructed Startrack that they now have "authority to leave". We have incurred a lot of re-delivery charges on our account because no-one was home to receive the goods.

Thank you.

SKU 11XP-12VS-RED
Brand Runva
Shipping Weight 35.0000kg
Shipping Width 30cm
Shipping Height 30cm
Shipping Length 40cm
Shipping Cubic 0.036000000m3

General Warranty Information

Since all Runva Performance Winches are produced at the highest standard, we proudly offer a Limited Lifetime Warranty on all products.

Lifetime Mechanical Warranty  This covers all Mechanical Components on the winch. (Except Steel Cable and Dyneema Winch Rope)

5 Year Electrical Warranty this covers all Electrical Components on the winch.

No Yearly Servicing Required
No Hidden Fine print
Extremely low failure rate.

In the unlikely event of a claim, they are acknowledged and handled very quickly
