4WD - EXTENSION & PAD PACK (INC. SB113-117) IN CARRY BAG - ON BACKORDER DUE MAY 2021
Four wheel drivers with lifted vehicles are often faced with quite a significant dilemma when out in the bush
with a flat… their factory bottle jack is no longer effective! They have lifted their vehicles 50-100mm and the
bottle jack ram does not extend high enough to get the tyre off the ground.
To get around this the current options are to:
• Get a lump of wood or cribbing blocks to place under the bottle jack (dangerous because
instability could result in collapse)
• Purchase & carry a new bottle jack/trolley jack with a ram length extendable to suit their lift
(expensive & big/heavy to carry)
• Use a High Lift jack or similar (unstable at height, sometimes difficult to use, not everyone has one)
Roadsafe have a program in the form of ‘Bottle Jack Extensions & Jack accessories’.
All aimed at making the process of jacking up vehicles a much safer and more secure one.

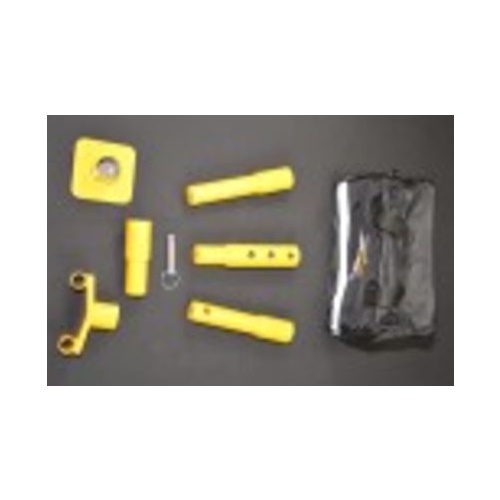

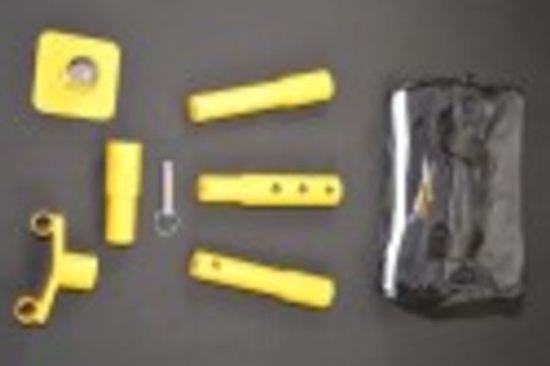

Roadsafe Bottle Jack Extensions are sized to slip over the ram of the standard bottle jack and
basically act as a ram extension, adding length to the ram so the jack can sit firmly on the ground
while the load is lifted. The parts slot snugly together, which makes the jacking option much safer
and less likely to tip and become unstable.
The standard extensions have been designed with 35.5mm ID so suit for ram diameters of
between 28-35mm (6 ton bottle jack typically have a 1.25” (31.75mm) ram diameter). With
adaptors available to suit for 35.5mm-39.5mm, 40mm-44.5mm & 45-49.5mm.
Extensions have been designed allowing for 75mm (3”), 150mm (6”) & 225-305mm adjustable
(up to 12”). The extensions have been designed to slot together snugly, so you can interchange
the pieces to get the height & configuration required. Using all three extensions together will give
530mm (20”) of extension.
Jack pads have also been included in the range. The jack pads simply slot onto the ram extensions
(or adaptors) to provide a flat 100x100mm head, or an angled head suited for axle tubes and other
rounded surfaces (ie. rock sliders etc.) up to 80mm in diameter. The pads increase the jacking
stability and serve to distribute the load over a greater surface area to minimize damage to the
specific area being lifted.
|Unit Of Measure||ea|
