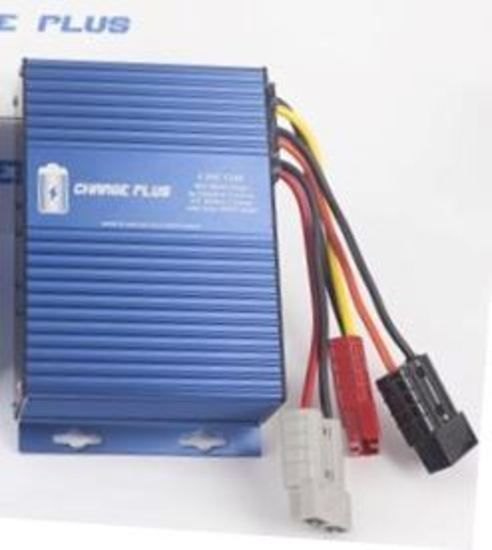

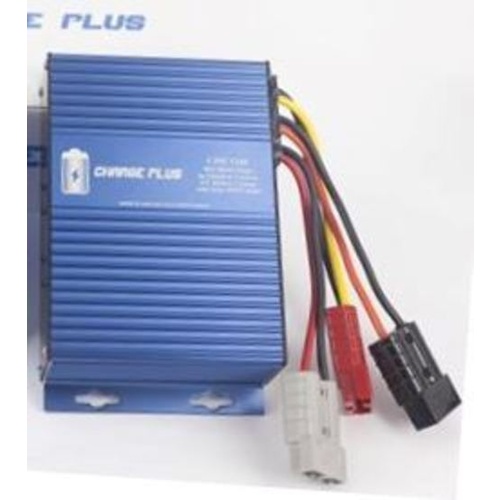

Charge Plus DCDC 40 Amp In-Vehicle Battery Charger - CPIC1240
Charge plus’s 12V 20 A & 40A In-vehicle battery charger features technology designed to fully charge your batteries, regardless of their type or size.
By providing the correct charging profile to each specific battery type, the Charge Plus In-Vehicle Battery Charger is able to achieve and maintain an optimal
charge in your secondary battery whether it is fitted to your 4 x 4, Caravan or Motor Home.
Charge plus’s In-vehicle battery chargers are one of the most flexible chargers on the market as it will charge both Lead acid and Lithium iron Phosphate LiFePO4) technology Batteries.
Charge plus’s In-vehicle battery chargers have the largest input operating voltage range in the market. Where other products in the market are limited to a maximum of 32v off your vehicle or 28v on solar our systems are fully automotive load dump rated to 80v and have a maximum input voltage of 40v off your vehicle or 60v on solar.
Charge plus’s wide input voltage range allows for 2 x 12v unregulated solar panels in series or a 24v unregulated solar panel to be connected to the In-Vehicle Battery Charger Maximum Power Point Tracking (MPPT) solar regulator input, allowing you to deliver the maximum amount of power from your solar panels to your auxiliary battery.
You can connect up to 300 watts of solar on the 20 amp or 600 watts of solar on the 40 amp charger.
Multi colour status indicator
To assist in quick charging diagnosis, a multi colour LED indicator is provided.
Colour vs status is listed below:
Red indicates that the battery is charging at maximum current and the battery voltage is below 13.5 volts. (Bulk charge with low battery.)
Amber indicates that the battery is charging at maximum current and the battery voltage is greater than 13.5 volts. (Bulk charge with almost charged battery.)
Flashing of either the Red or Amber indicates the input is not able to supply the full current so charging current is reduced so as not to overload the input wiring.
Green indicates that adsorption voltage has been reached and absorption charging is under way.
Blue indicates that absorption charging is completed and the battery is now being held at 13.5 volts.
No light indicates unit is in standby mode.
Flexible installation in 12v or 24v Vehicles
Multi Stage DC-DC Battery Charger
Dual Input, Start battery & Dedicated Solar input (no external relay required)
MPPT Solar Regulator
Ignition input to start charging cycle
Alternator charging sensing to start charging cycle, ideal when fitted to caravans
Start Battery Isolation
Start Battery Maintenance Charging once second battery is fully charged when charging from solar.
Multi-Colour Status LED.
Anodised Aluminum housing with all stainless steel fixings

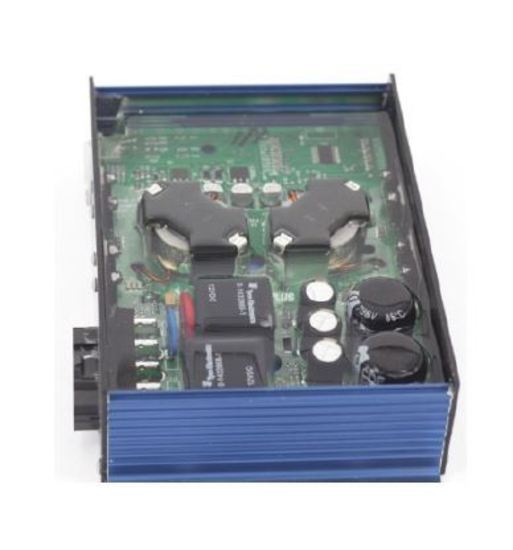

Electronics are silicone encapsulated for durability in our Australian Conditions.
Super quiet operation
Charges AGM, Gel, Calcium content, VRLA and Standard Lead Acid batteries
Charges LiFePO4 batteries
Multi-Colour Remote mounted Status LED (Optional Kit sold separately)
Mating input and output Anderson Connectors Supplied (Solar input Connector kit sold separately)
