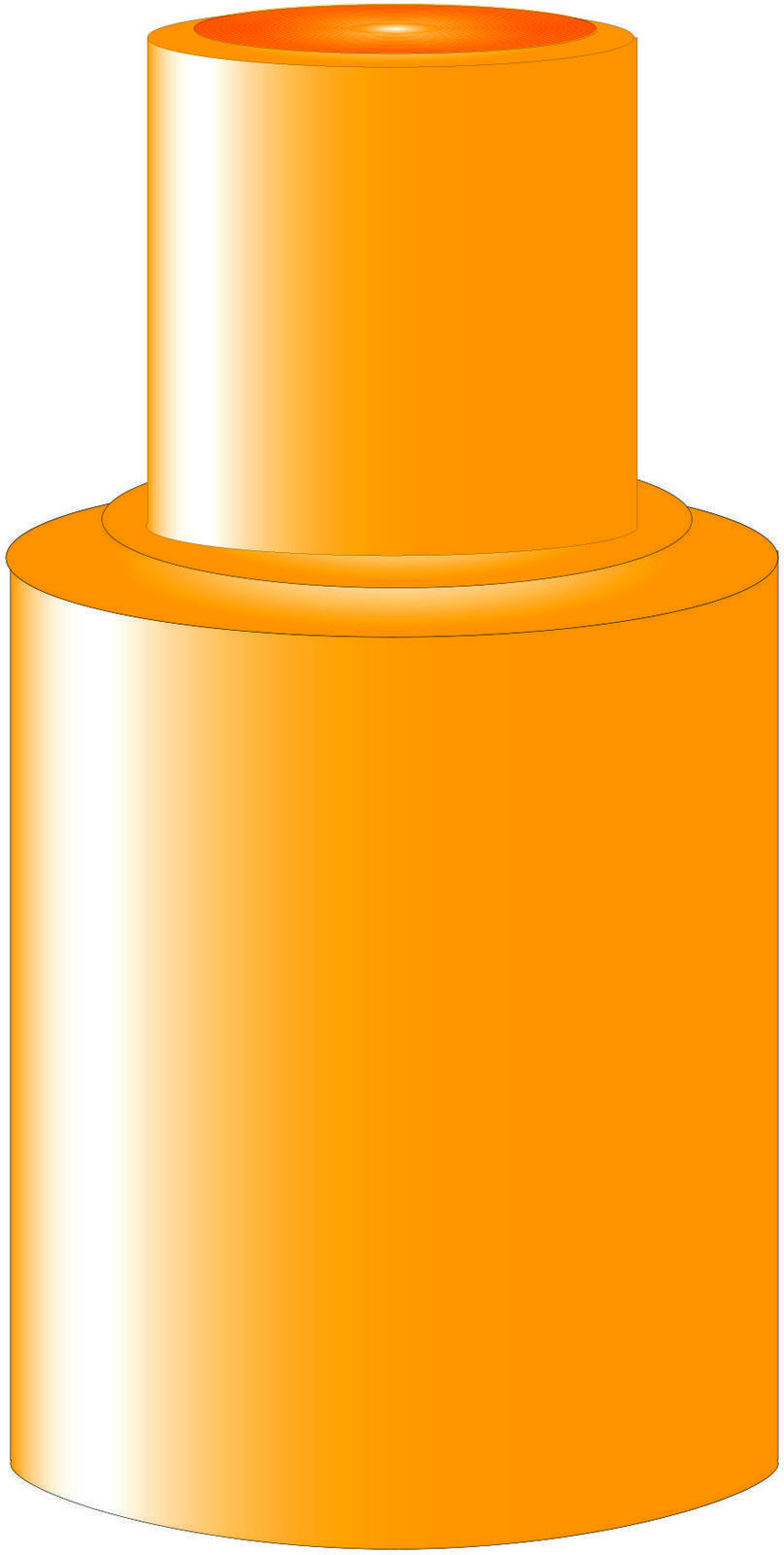

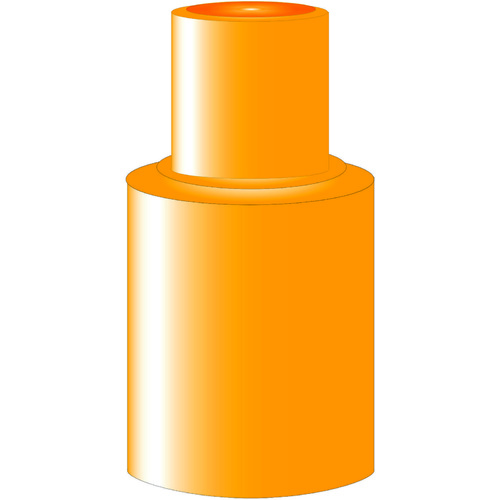

4WD - 50mm ID RAM ADAPTOR

4WD - 50mm ID RAM ADAPTOR

Roadsafe have a program in the form of ‘Bottle Jack Extensions & Jack accessories’.
All aimed at making the process of jacking up vehicles a much safer and more secure one.
Roadsafe Bottle Jack Extensions are sized to slip over the ram of the standard bottle jack and
basically act as a ram extension, adding length to the ram so the jack can sit firmly on the ground
while the load is lifted. The parts slot snugly together, which makes the jacking option much safer
and less likely to tip and become unstable.

The standard extensions have been designed with 35.5mm ID so suit for ram diameters of
between 28-35mm (6 ton bottle jack typically have a 1.25” (31.75mm) ram diameter). With
adaptors available to suit for 35.5mm-39.5mm, 40mm-44.5mm & 45-49.5mm.
Extensions have been designed allowing for 75mm (3”), 150mm (6”) & 225-305mm adjustable
(up to 12”). The extensions have been designed to slot together snugly, so you can interchange
the pieces to get the height & configuration required. Using all three extensions together will give
530mm (20”) of extension.
